KBSZ™ Knee Brace Stabilizer

The KBS1Z knee brace stabilizer makes a structural connection between knee bracing and columns or beams to help stabilize freestanding structures and comply with many prescriptive deck bracing requirements such as AWC's DCA6 Prescriptive Residential Wood Deck Construction Guide. Factory-formed at a 45° angle and easily installed with nails, the KBS1Z braces 2x, 4x and 6x in line post-to-beam configurations. Check with your local building department for deck bracing requirements.

Material

  • 16 gauge

Finish

  • ZMAX® coating

Installation

  • Use all specified fasteners; see General Notes.
  • For installations at an angle other than 45°, bend KBS1Z along slots to desired angle. Bend one time only.
  • Knee Brace:
    — Cut braces at desired angle
    — Bend KBS1Z to desired angle if required
    — Install fasteners to secure in place
    — For equal-width members, install (2) KBS1Z on each end of brace (see illustration, connection type 1)
    — For 2x knee brace, install single KBS1Z on each end of brace (see illustration, connection type 2)
  • Alternate Post Cap Application:
    — Install in pairs; see illustrations for quantity and configuration
    — Part used as a column cap; does not replace a knee brace

Patent Information

  • US Patent 9,045,895

Related Literature

Product Information Table

Fastener Production Information and Stuff & Things
Model No. Ga. W (in.) L (in.) Coating/Material Packaging Qty.
KBS1Z 16 1 1/2 3 ZMAX® 1

Load Tables

    These products are available with additional corrosion protection.

    Many of these products are approved for installation with Strong-Drive® SD Connector screws.

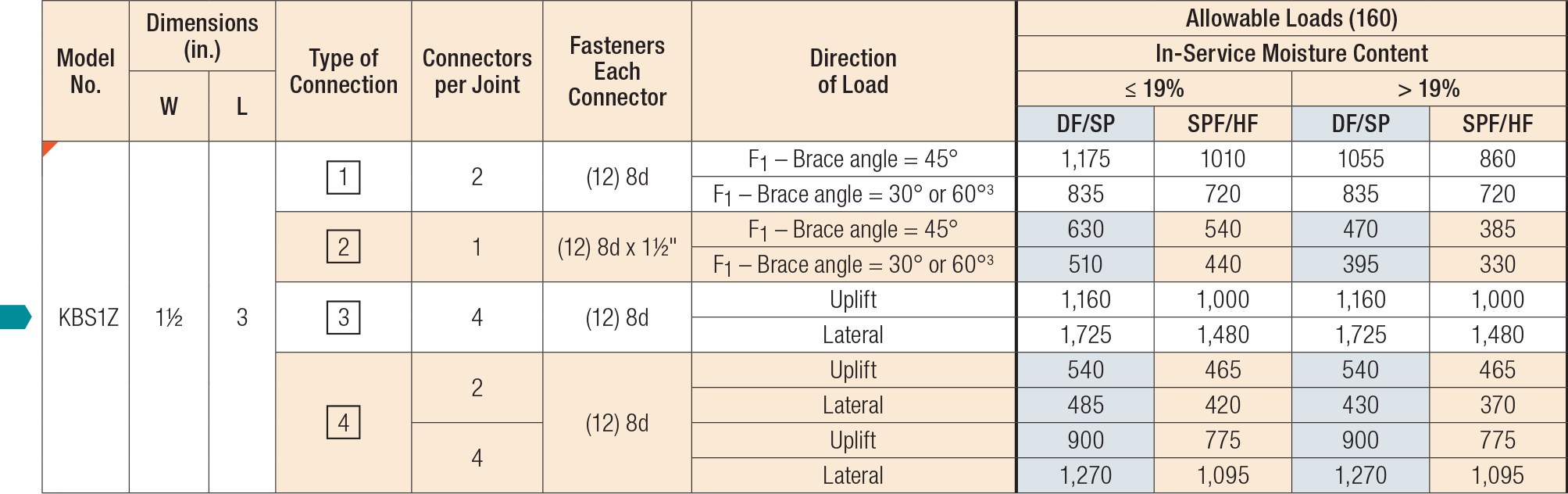

KBS1Z Knee-Brace Stabilizer Load Table
  1. Allowable loads have been increased for wind or earthquake loading with no further increase allowed. Reduce where other loads govern.
  2. For braces installed at intermediate angles, allowable loads may be interpolated between loads listed for brace angle = 45° and those listed for brace angle = 30° or 60°.
  3. #9 x 1 1/2" Strong-Drive® SD Connector screws may be substituted for fasteners specified with no load reduction.
Post-to-Knee Brace Connection
1 -Post-to-Knee Brace Connection
(Same member width)
Single knee brace shown. Double knee brace installation similar.
Post-to-2x Knee Brace Connection
2 - Post-to-2x Knee Brace Connection
(Continuous) Beam-to-Post
3 - (Continuous) Beam-to-Post
End Beam-to-Post
4 - End Beam-to-Post

Code Reports & Compliance

Drawings

PDF DWG DXF RFA IFC SAT
